BKS-1800

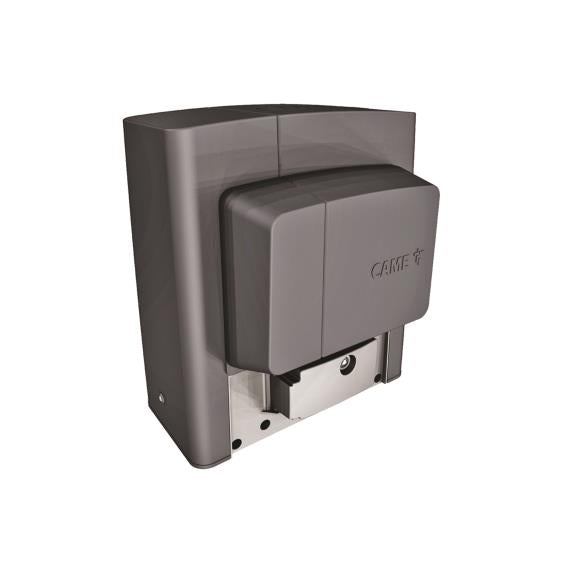

Automatic motor with electronics 1200kg

Mark: Came, Max. wing length: 10m, Recommended weight of the wing: 900kg, Module of the gear comb: mod 4, Use: Industry, Parts of the set: BKS18AGS-1x, ZBKN-1x, Drive slowdown: Drive not decelerate, Motor power supply: AC 230V, Performance: 480W, Force: 1150N, Speed: 10,5 m/min, Power supply: AC 230V, Controller: ZBKN, Master/Slave: Yes, Capacitor: 31,5uF, Protection level: IP44

13.166,90 Kč
without VAT
15.931,95 Kč
with VAT
PCS
Stock availability
SK Krompachy > 10
CZ Říčany u Brna 1
CZ Hradec Králové 0
CZ Praha Otice 0
CZ Moravany Brno 0

Kontakt

Pro více informací kontaktujte našeho obchodníka:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametry Ke stažení Části sestavy Katalogový list Povinný sortiment Doporučené produkty Alternativní produkty V setech

Parametry

Pohon CAME pro posuvné brány 1200kg
Mark
Information about producer of product
Came
Max. wing length
Maximum wing length for the given drive
10m
Module of the gear comb
Určuje kompatibilitu hrebeňa s pastorkom motora.
mod 4
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
900kg
Use
Industry
Parts of the set
null
Drive slowdown
Information about the drive slowing down before the end position.
Drive not decelerate
Motor power supply
Type and value of the motor supply voltage
AC 230V
Performance
480W
Force
1150N
Speed
Parameter of the drive feed speed
10,5 m/min
Power supply
Type and value of the power supply voltage
AC 230V
Controller
ZBKN
Master/Slave
Yes
Protection level
IP44
Capacitor
31,5uF

Ke stažení

PDF

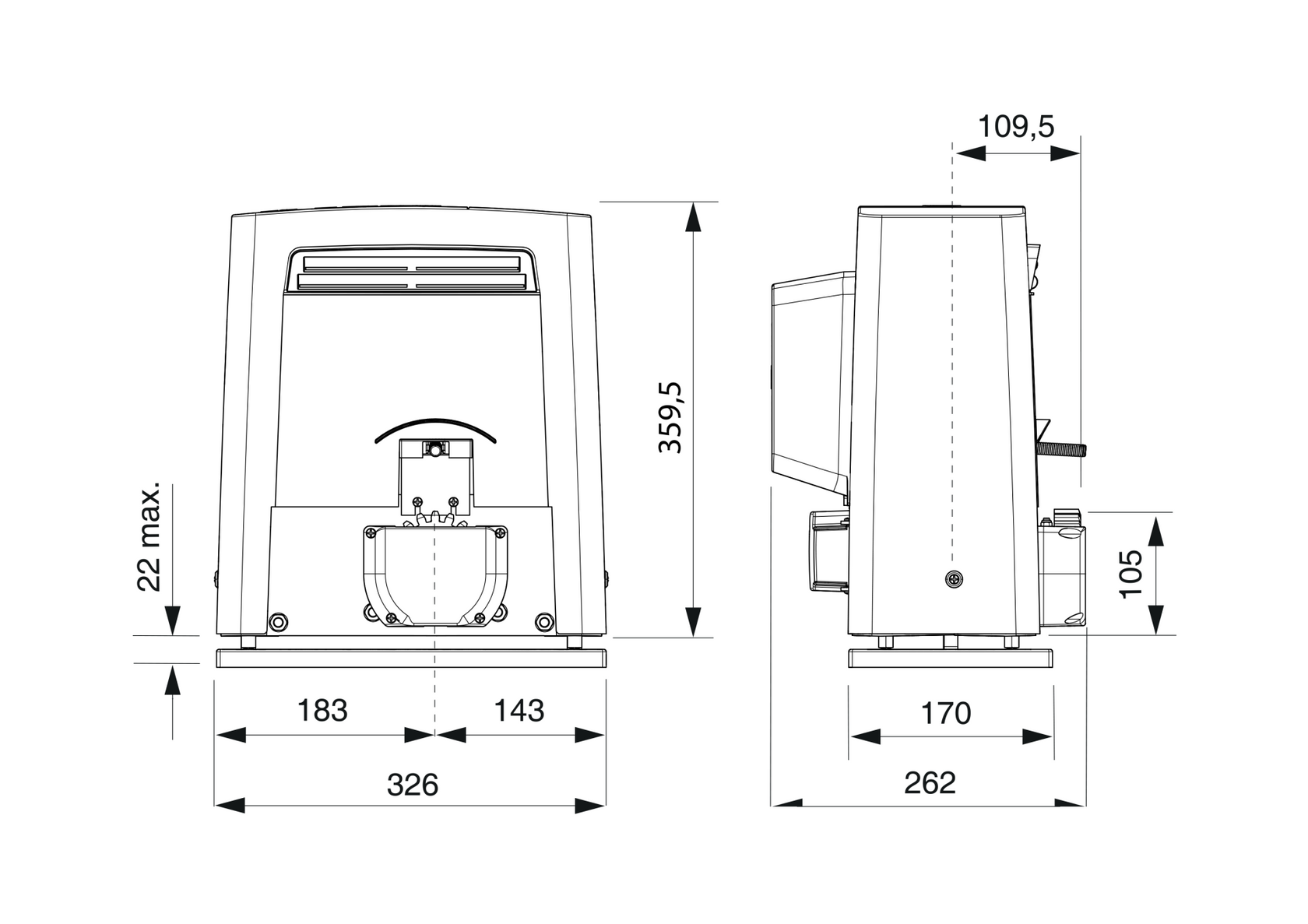

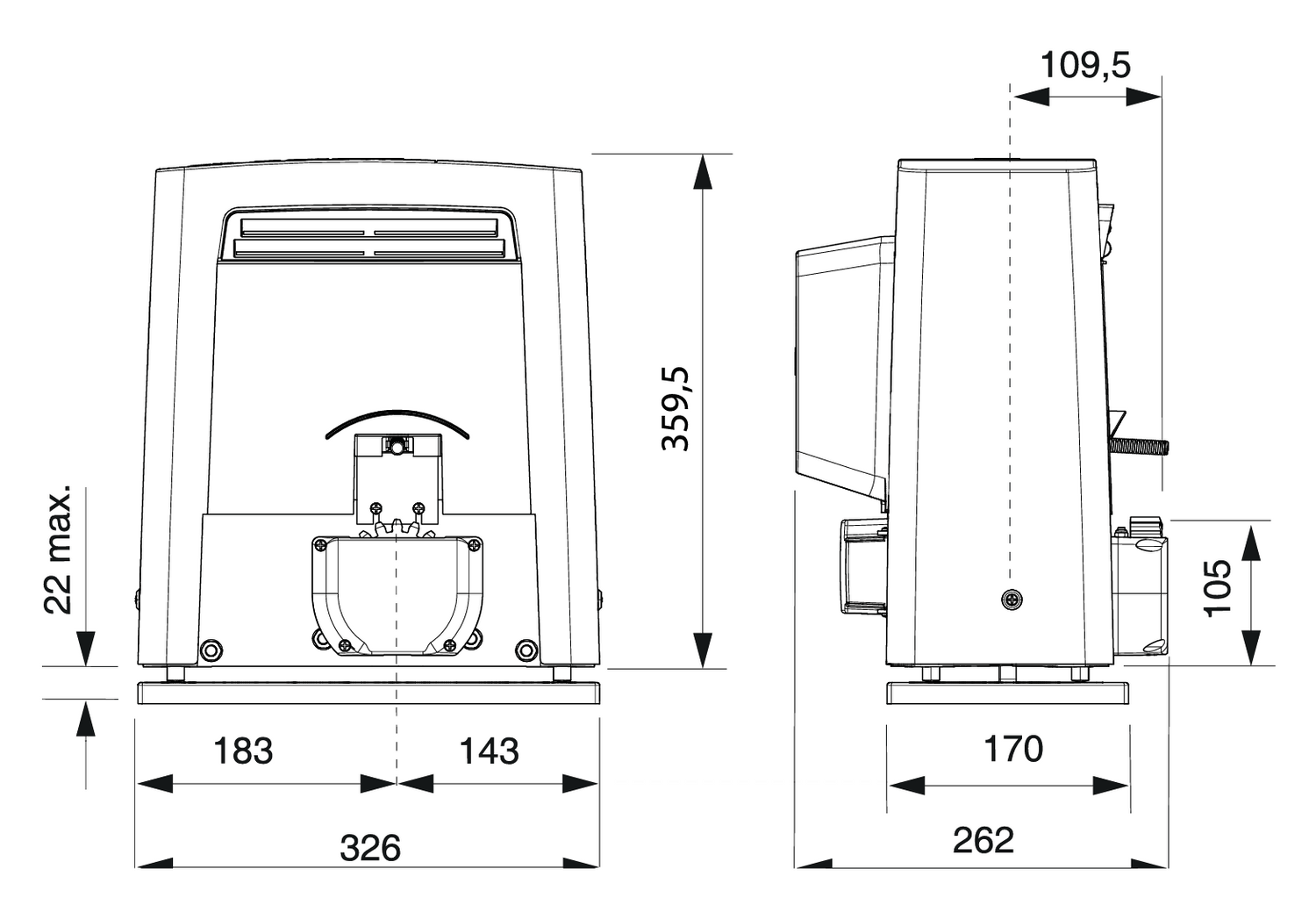

Parametric drawing

Části sestavy

Elektronika pro motor BK1200,1800,2200

Control unit for BK1200/1800/2200 ZBKN

1 pcs
