GS-BLACK/ZP-804/S-C

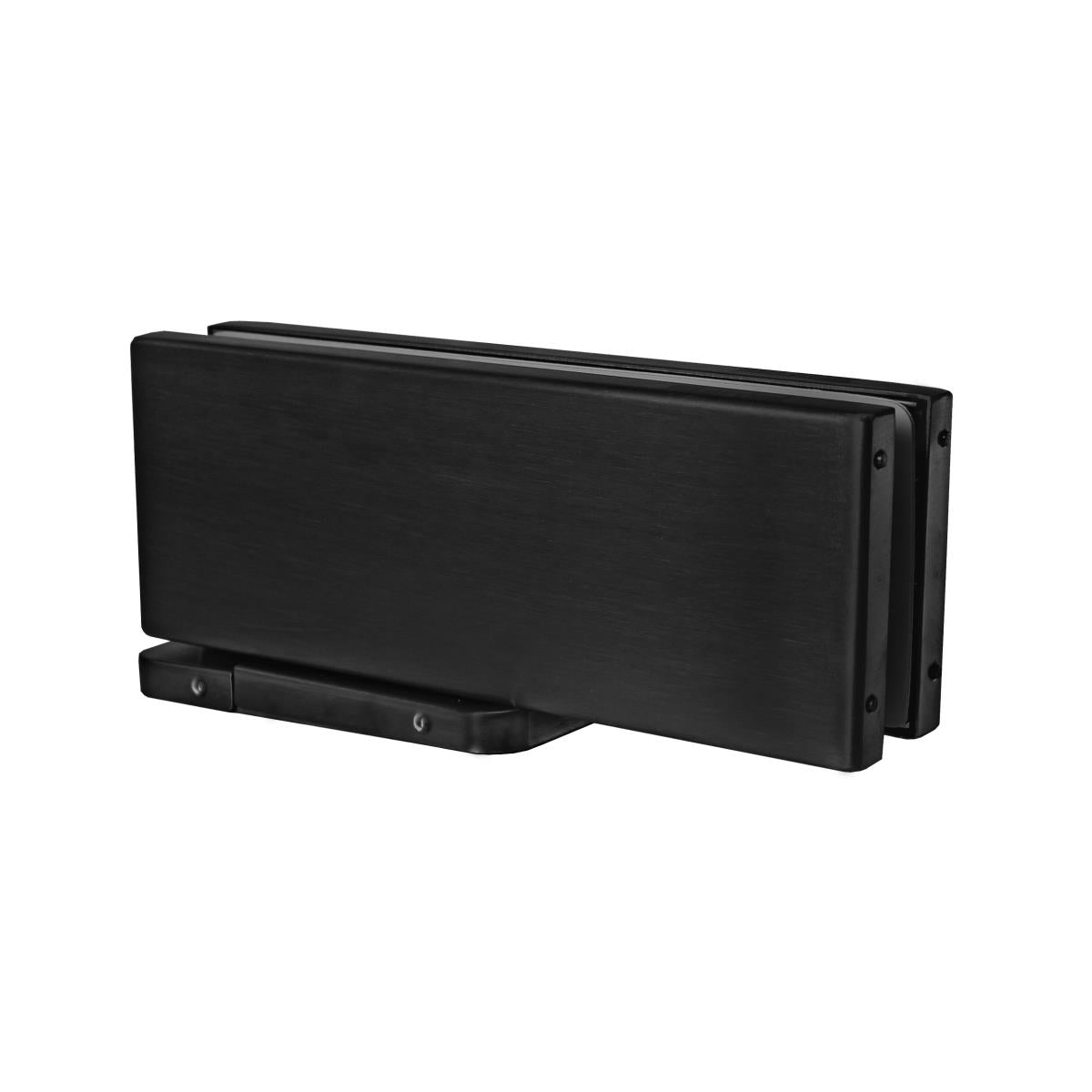

Bottom hinge with pivot to the floor BLACK

Material: Stainless steel AISI 304/Steel, Surface finish: oxide black, Glass t: 10-12, Recommended weight of the wing: 100kg, Self closing mechanism: Yes, Function stop on angle: +-90°/0°, Glass hole: Yes

2.015,10 Kč
without VAT
2.438,27 Kč
with VAT
PCS
Stock availability
SK Krompachy 19
CZ Říčany u Brna 0
CZ Hradec Králové 0
CZ Praha Otice 0
CZ Moravany Brno 0

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

Hydraulic selfcloser with locking. Stainless steel surface finish. For glass thicknesses of 8,10,12mm. Maximum weight of doors 100kg width 850-1000mm. Possibility to regulate the closing and closing speeds.

Parameters

Hydraulicky samozatvárač AISI304 BLACK
Material
Defines the material from which the product is made.
Stainless steel AISI 304/Steel
Surface finish
Surface finish of product
oxide black
Glass t
Determines the thickness of the glass in mm the product is suitable for
10-12
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
100kg
Self closing mechanism
Yes
Function stop on angle
+-90°/0°
Glass hole
Yes

Catalog list

Bottom hinge with pivot to the floor BLACK
umakov-cz

Bottom hinge with pivot to the floor BLACK

2.015,10 Kč
Hydraulic selfcloser with locking. Stainless steel surface finish. For glass thicknesses of 8,10,12mm. Maximum weight of doors 100kg width 850-1000mm. Possibility to regulate the closing and closing speeds.
