Catalog
A/0743-033

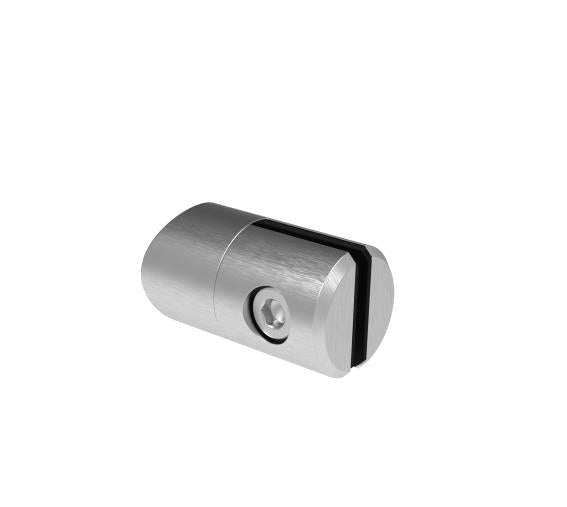

Metal sheet holder

Material: Stainless steel AISI 304, Surface finish: Satined, Glass t: 1,5-4, Post: D33,7, Model: Model 0743, Phi: 33,7

77,10 Kč
without VAT
93,29 Kč
with VAT
PCS
Stock availability
SK Krompachy > 250
CZ Říčany u Brna 0
CZ Hradec Králové 0
CZ Praha Otice 0
CZ Moravany Brno 0
Incoming stock
Calendar Icon Expected arrival Box Icon Quantity
26.01.2026 > 250

Kontakt

Pro více informací kontaktujte našeho obchodníka:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Popis Parametry Ke stažení Části sestavy Katalogový list Povinný sortiment Doporučené produkty Alternativní produkty V setech

Popis

Sheet filling holder for the post, assembly joint.

Parametry

Držák výplně - plechu
Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
1,5-4
Model
Model 0743
Post
Determines use based on the size and shape of the post
D33,7
Phi
33,7

Ke stažení

STEP
STEP file
PDF

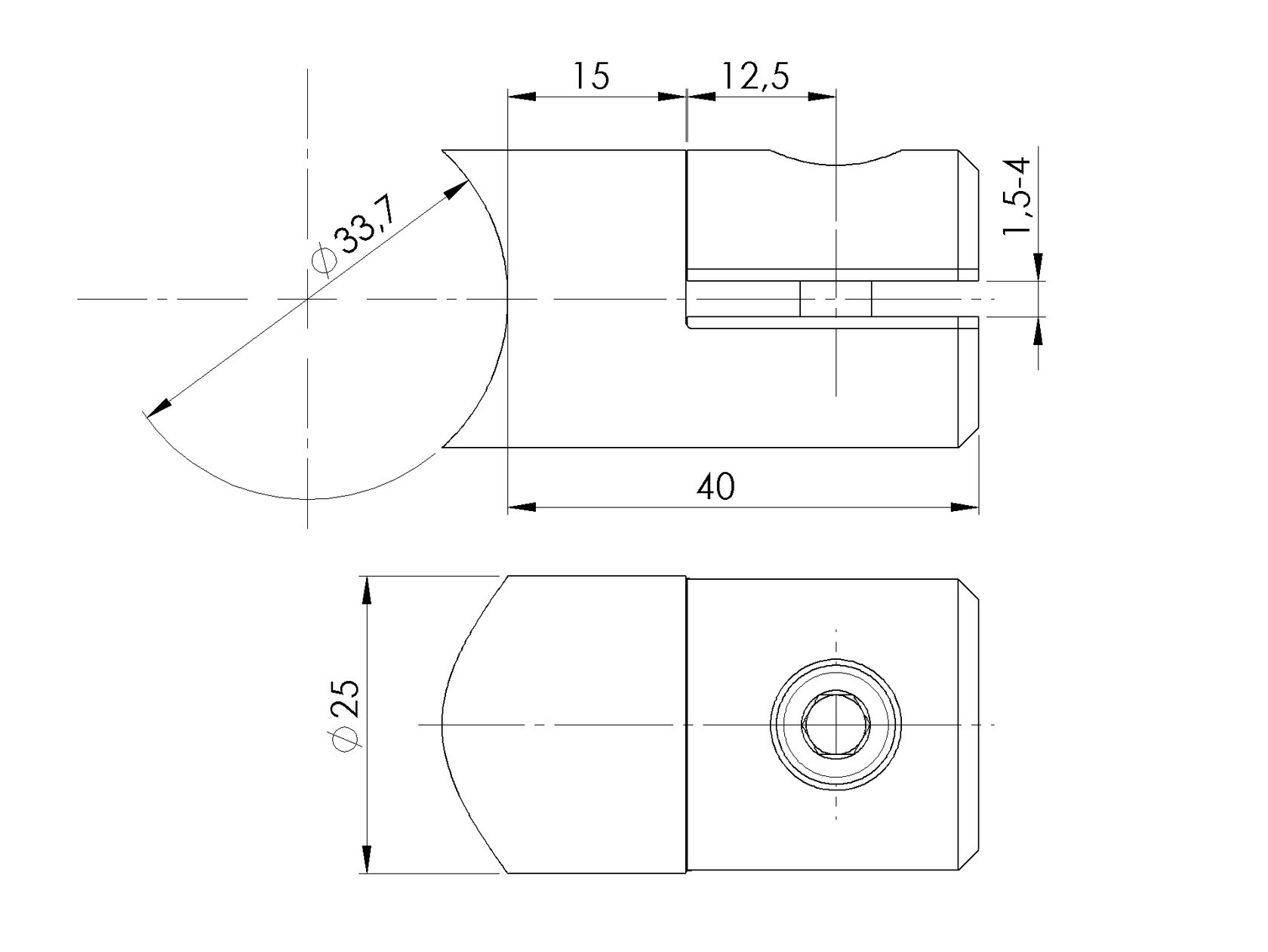

Parametric drawing

Katalog
