GS-304/ZP-820/S

Mortise roller lock

Material: Stainless steel AISI 304, Surface finish: Satined

174,50 Kč
without VAT
211,15 Kč
with VAT
PCS
Stock availability
SK Krompachy > 10
CZ Říčany u Brna 0
CZ Hradec Králové 0
CZ Praha Otice 5
CZ Moravany Brno 0

Contact

For more information, please contact our sales:

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

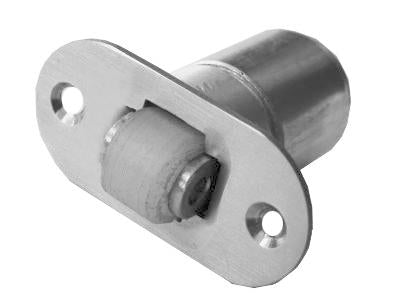

Stainless steel - counterpart to the lock box GS-304/ZP-814/S with a spring, dustproof.

Lock parameters:
Roller diameter: 14 mm
Maximum roller extension: 9.5 mm
Roller extension adjustment: 0 - 9.5 mm
Lock faceplate thickness: 1 mm.
The lock faceplate, guide pulley, spring, adjustment screw and roller axis are made of stainless steel.
The lock can be installed in a hole drilled with a drill with a diameter of 22 mm.

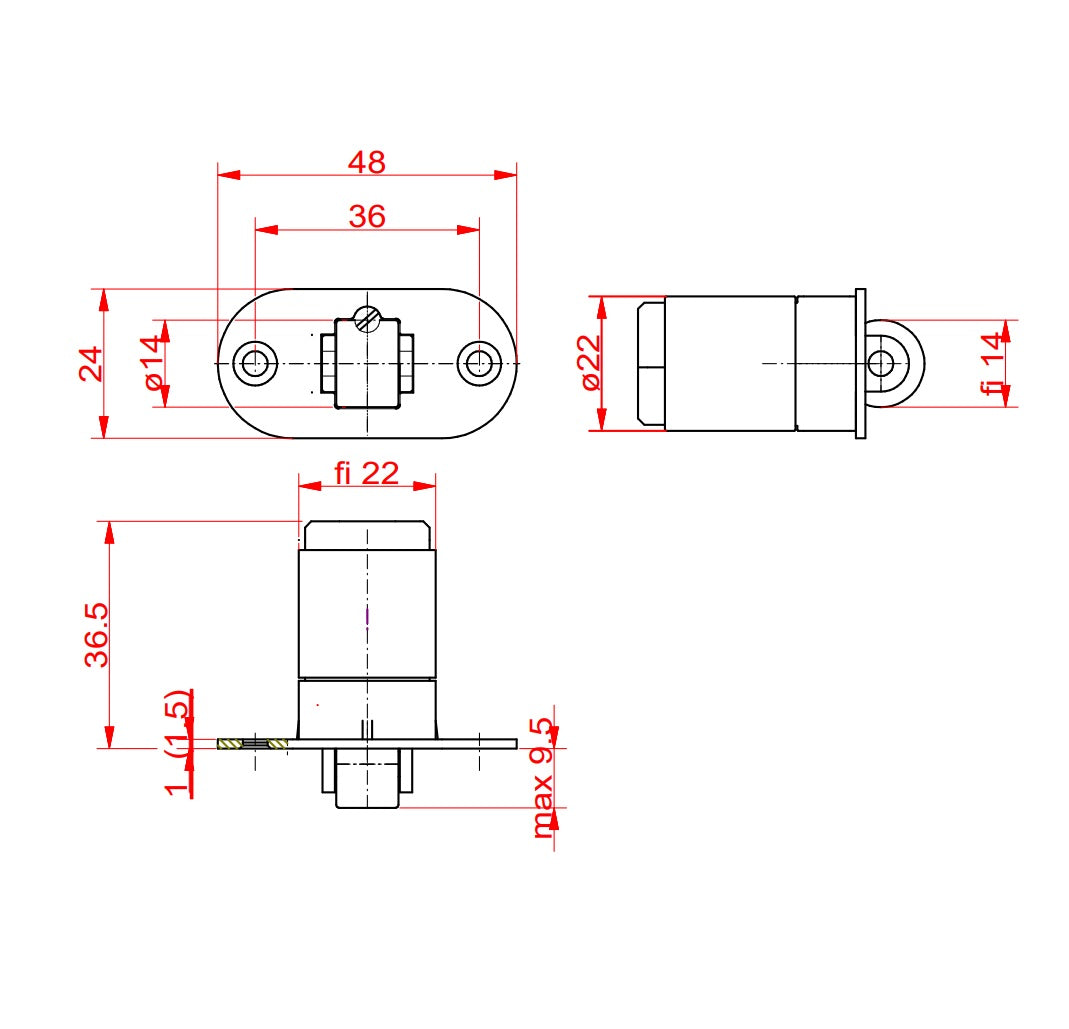

Product dimensions:
Body diameter: 22 mm
Length: 36.5 mm
Front width: 24 mm


Parameters

Zadlabávací valčekový zámok
Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Satined

Catalog list

Mortise roller lock
umakov-cz

Mortise roller lock

174,50 Kč

Stainless steel - counterpart to the lock box GS-304/ZP-814/S with a spring, dustproof.

Lock parameters:
Roller diameter: 14 mm
Maximum roller extension: 9.5 mm
Roller extension adjustment: 0 - 9.5 mm
Lock faceplate thickness: 1 mm.
The lock faceplate, guide pulley, spring, adjustment screw and roller axis are made of stainless steel.
The lock can be installed in a hole drilled with a drill with a diameter of 22 mm.

Product dimensions:
Body diameter: 22 mm
Length: 36.5 mm
Front width: 24 mm
